Stainless Steel Perforated Metal Mesh: Versatility and Functionality Through Precise Engineering

Wetter Stainless Steel Wire Mesh Factory is a leading supplier of high-performance stainless steel perforated metal mesh. Our precisely crafted perforated sheets offer exceptional versatility for a wide range of applications in decoration, filtration, and industrial processes.

Customization to Meet Your Needs

Wetter understands that every application has specific requirements. That's why we offer a high degree of customization for our perforated metal mesh. We can create sheets with various opening patterns, sheet shapes, and materials to perfectly suit your project's needs.

Opening Patterns: Choose from a comprehensive selection of opening patterns, including:

• Stainless Steel Perforated Metal Mesh with Round Holes
• Stainless Steel Rectangular Hole Perforated Metal Mesh
• Stainless Steel Square Hole Perforated Sheet
• Stainless Steel Triangular Hole Perforated Metal Mesh
• Stainless Steel Diamond Hole Perforated Sheet
• Stainless Steel Hexagonal Hole Perforated Metal Mesh
• Stainless Steel Slotted Hole Perforated Metal Mesh

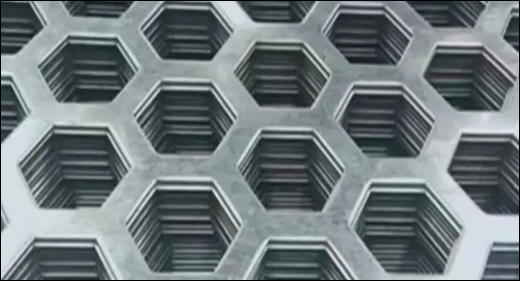

Stainless Steel Hexagonal Hole Perforated Sheet

• Material: Type 304 or 316 stainless steel
• Hole Shape: Hexagonal
• Hole Pattern: Staggered
• Hole Size: 2 mm, 3 mm, 4 mm, 5 mm, 6 mm, 8 mm, 10 mm, 12 mm, 15 mm
• Sheet Thickness: 1 mm, 2 mm, 3 mm, 4 mm, 5 mm, 6 mm
• Sheet Width: 1000 mm to 2000 mm (39.37 inches to 78.74 inches)
• Sheet Length: 1000 mm to 3000 mm (39.37 inches to 118.11 inches)
• Open Area: 20%, 30%, 40%, 50%, 60%
• Surface Finish: Mill finish

Stainless Steel Round Hole Perforated Metal Mesh

• Material: Type 304 or 316 Stainless Steel

• Hole Shape: Round

• Hole Pattern: Staggered

• Hole Size: 1 mm, 2 mm, 3 mm, 4 mm, 5 mm, 6 mm, 8 mm, 10 mm, 12 mm, 15 mm

• Sheet Thickness: 0.5 mm, 1 mm, 2 mm, 3 mm, 4 mm, 5 mm, 6 mm

• Sheet Width:

  • 500 mm (19.68 inches)
  • 1000 mm (39.37 inches)
  • 1500 mm (59.06 inches)
  • 2000 mm (78.74 inches)

• Sheet Length:

  • 1000 mm (39.37 inches)
  • 2000 mm (78.74 inches)
  • 3000 mm (118.11 inches)

• Open Area: 10%, 20%, 30%, 40%, 50%, 60%, 70%, 80%

• Surface Finish: Mill Finish, Brushed, Polished

Notes:

• Open Area Correction: Added the missing percent sign for the 80% open area value.
• Formatting: Ensured consistent capitalization and formatting across all parameters for clarity.

Stainless Steel Perforated Metal Mesh with Triangular Holes

Hole Shape:

• Triangular

Hole Pattern:

• Straight
• Staggered

Hole Size:

• Side Lengths: 1 mm, 2 mm, 3 mm, 4 mm, 5 mm, 6 mm, 8 mm, 10 mm, 12 mm, 15 mm, 20 mm

Pitch:

• Varies based on hole size and desired open area

Sheet Thickness:

• 0.5 mm, 1 mm, 1.5 mm, 2 mm, 2.5 mm, 3 mm, 4 mm, 5 mm, 6 mm

Sheet Width:

• 500 mm, 1000 mm, 1250 mm, 1500 mm, 2000 mm

Sheet Length:

1000 mm, 2000 mm, 2500 mm, 3000 mm

Open Area:

• 10%, 20%, 30%, 40%, 50%, 60%, 70%

Surface Finish:

• Mill Finish, Brushed, Polished

Additional Details:

• Customization: Triangle orientation, margins, pitch adjustment
• Applications: Architectural design, decorative elements, filtration, ventilation, safety
• Benefits: Unique aesthetic, strength, versatility, corrosion resistance

Standards:

• ISO 9001
• ASTM A240/A240M

Stainless Steel Perforated Metal Mesh with Square Holes

• Material:

  • Type 304 Stainless Steel
  • Type 316 Stainless Steel

• Hole Shape:

  • Square

• Hole Pattern:

  • Straight Pattern (holes aligned in rows and columns)

• Hole Size (Square Dimensions):

  • 1 mm × 1 mm
  • 2 mm × 2 mm
  • 3 mm × 3 mm
  • 4 mm × 4 mm
  • 5 mm × 5 mm
  • 6 mm × 6 mm
  • 8 mm × 8 mm
  • 10 mm × 10 mm
  • 12 mm × 12 mm
  • 15 mm × 15 mm
  • 20 mm × 20 mm

• Pitch (Center-to-Center Spacing):

  • Determined based on hole size and desired open area; typically ranges from 1.5 mm to 25 mm

• Sheet Thickness:

  • 0.5 mm
  • 1 mm
  • 1.5 mm
  • 2 mm
  • 2.5 mm
  • 3 mm
  • 4 mm
  • 5 mm
  • 6 mm

• Sheet Width:

  • 500 mm (19.68 inches)
  • 1000 mm (39.37 inches)
  • 1250 mm (49.21 inches)
  • 1500 mm (59.06 inches)
  • 2000 mm (78.74 inches)

• Sheet Length:

  • 1000 mm (39.37 inches)
  • 2000 mm (78.74 inches)
  • 2500 mm (98.43 inches)
  • 3000 mm (118.11 inches)

• Open Area:

  • 10%
  • 20%
  • 30%
  • 40%
  • 50%
  • 60%
  • 70%

Stainless Steel Slotted Hole Perforated Sheet

Hole Shape:

• Slotted (Oblong)

Hole Pattern:

• Straight
• Staggered

Slot Dimensions:

• Width: 0.5 mm, 1 mm, 1.5 mm, 2 mm, 2.5 mm, 3 mm, 4 mm, 5 mm, 6 mm
• Length: 5 mm, 10 mm, 15 mm, 20 mm, 25 mm, 30 mm, 40 mm, 50 mm

Pitch:

• Transverse: Varies based on slot width and desired open area
• Longitudinal: Varies based on slot length and desired open area

Sheet Thickness:

• 0.5 mm, 1 mm, 1.5 mm, 2 mm, 2.5 mm, 3 mm, 4 mm, 5 mm, 6 mm

Sheet Width:

• 500 mm, 1000 mm, 1250 mm, 1500 mm, 2000 mm

Sheet Length:

• 1000 mm, 2000 mm, 2500 mm, 3000 mm

Open Area:

• 10%, 20%, 30%, 40%, 50%, 60%

Surface Finish:

• Mill Finish, Brushed, Polished

Additional Details:

• Customization:
  • Slot Orientation: Horizontal or Vertical
  • Margins and Borders: Customized
  • Pitch Adjustment
• Applications: Filtration, ventilation, architectural design, safety, agriculture, automotive

Benefits:

• Corrosion resistance
• Strength and durability
• Versatility
• Aesthetic appeal
• Efficiency

Special custom designs for unique aesthetic effects

• Sheet Shapes: We can fabricate perforated sheets in various shapes to seamlessly integrate into your design. Common options include square, rectangular, and round shapes, but custom shapes are also available upon request.
• Material Selection: Our perforated metal mesh is primarily crafted from high-quality stainless steel, renowned for its durability, corrosion resistance, and clean aesthetics. However, we can also explore alternative materials to meet specific project requirements.



Key Specifications to Consider

To ensure you receive the optimal perforated metal mesh solution, some key specifications need to be considered when requesting a quote:

• Hole Pattern: Specify the desired opening pattern from the options listed above or provide details for a custom design.
• Sheet Shape: Indicate the preferred sheet shape, such as square, rectangular, or round. Custom shapes can also be discussed.
• Material: Select the most suitable material for your application. Stainless steel is a popular choice, but other options may be available.
• Sheet Size: Provide the desired dimensions for the perforated metal sheet.
• Unique Requirements: Outline any specific needs or functionalities you require for the perforated mesh.
• Application: Briefly describe how you intend to use the perforated metal mesh to help us recommend the most appropriate solution.


The Wetter Advantage: Expertise You Can Trust

Wetter Stainless Steel Wire Mesh Factory is your trusted partner for perforated metal mesh solutions. Our commitment to customization, high-quality materials, and precision engineering guarantees you receive a product that is both functional and aesthetically pleasing. Contact us today to discuss your project and explore the possibilities with Wetter's perforated metal mesh.
