316 316L Stainless Steel Wire Mesh Industrial Screen

Wetter Stainless Steel Wire Mesh Factory offers a comprehensive range of 316 Stainless Steel Wire Mesh products, tailored to meet high standards of quality and performance. Recognized for its superior corrosion and heat resistance, 316 stainless steel is an optimal material for producing various types of wire mesh, including woven, welded, and crimped designs.

Material Quality:

316 Stainless Steel, identified for its notable resistance against corrosion and high temperatures, making it ideal for demanding environmental conditions.

Weave Types:

• Plain Weave: The most common and simplest form, suitable for a variety of screening applications.
• Dutch Plain Weave: Known for tighter weave and finer filtration capabilities.
• Twill Weave: Offers added strength and is capable of supporting finer mesh counts.
• Dutch Twill Weave: Combines the complexity of twill and Dutch styles for superior strength and fine filtration.

Features:

316 Stainless Steel Wire Mesh is characterized by its robust structure, high tensile strength, and excellent wear resistance. It excels in environments requiring durability and reliability, making it a preferred choice for industrial use.

Mesh Sizes:

• Finer Meshes: Available for precise filtering, ranging from very fine to coarser weaves to suit various industrial needs.
• Standard Sizes: Mesh counts from finer weaves up to larger openings, designed to meet specific application requirements.

Applications:

• Industrial Screening: Utilized extensively in mining, coal processing, and grain separation.
• Scientific and Laboratory Use: Ideal for applications in medical, pharmaceutical, and scientific research due to its high precision and reliability.
• Food and Beverage Industry: Ensures safety and quality in food processing, capable of withstanding harsh cleaning processes.
• Architectural and Decorative Uses: Offers aesthetic appeal while maintaining functionality in architectural designs.

316 Stainless Steel Wire Mesh from Wetter is engineered to provide exceptional performance in a wide array of industrial applications. Each product is designed with precision, ensuring it meets the specific needs of industries requiring high levels of filtration, separation, and protection.

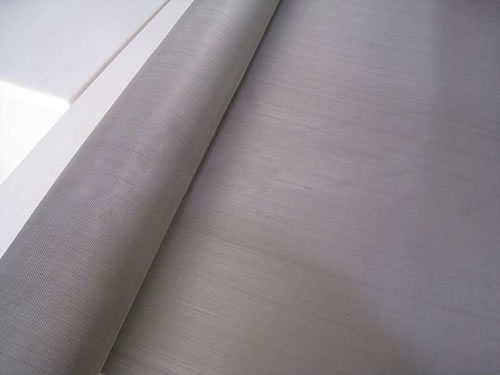

SS 316 Square Hole Wire Mesh, 200x200 Mesh

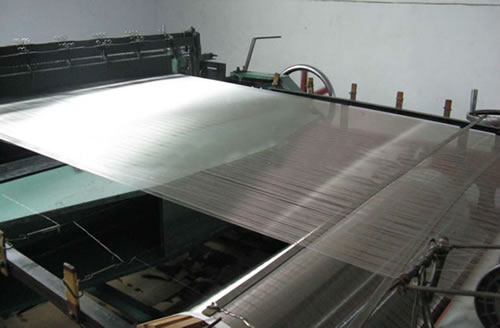

Weaving Machine for Stainless Steel 316 Wire Mesh, Plain Weaving

Specification List of 316 Woven Wire Mesh Screen
Mesh/Inch	Wire Gauge(SWG)	Aperture in mm
3mesh x 3mesh	14	6.27
4mesh x 4mesh	16	4.27
5mesh x 5mesh	18	3.86
6mesh x 6mesh	18	3.04
8mesh x 8mesh	20	2.26
10mesh x 10mesh	20	1.63
20mesh x 20mesh	30	0.95
30mesh x 30mesh	34	0.61
40mesh x 40mesh	36	0.44
50mesh x 50mesh	38	0.36
60mesh x 60mesh	40	0.30
80mesh x 80mesh	42	0.21
100mesh x 100mesh	44	0.172
120mesh x 120mesh	44	0.13
150mesh x 150mesh	46	0.108
160mesh x 160mesh	46	0.097
180mesh x 180mesh	47	0.09
200mesh x 200mesh	47	0.077
250mesh x 250mesh	48	0.061
280mesh x 280mesh	49	0.060
300mesh x 300mesh	49	0.054
350mesh x 350mesh	49	0.042
400mesh x 400mesh	49	0.0385
500mesh x 500mesh	50	0.0273
Roll width: 2"-8"

Popular 316 Square Wire Mesh Options

Wetter Stainless Steel Wire Mesh Factory offers a variety of high-quality 316 stainless steel square wire mesh options to suit your specific needs. Here are two popular choices:

SS 316 20x20 Mesh x 0.51 mm Wire Dia.

• Material: SUS 316 Stainless Steel (W1)
• Mesh Size: 20 x 20 mesh per linear inch (approximately 8 x 8 mesh per cm)
  Wire Diameter: 0.51 mm (0.020 in)
• Roll Width: 1016 mm (40 in)
• Description: Square aperture wire mesh screen made from SUS 316 stainless steel with a bright surface finish. Available in custom running lengths cut from a 1016 mm (40 in) wide roll.
• Typical Uses: Sifting and sizing applications.

SS 316 Wire Mesh 18x18 Mesh, 0.58 mm Wire Dia.

• Material: SUS 316 Stainless Steel (W1)
• Mesh Size: 18 x 18 mesh per linear inch (approximately 7 x 7 mesh per cm)
  Wire Diameter: 0.58 mm (0.023 in)
• Roll Width: 1016 mm (40 in)
• Description: Square aperture wire mesh screen made from SUS 316 stainless steel with a bright surface finish. Available in custom running lengths cut from a 1016 mm (40 in) wide roll.
• Typical Uses: General filtration and separation applications.

SUS 316-W1 Temper Stainless Steel Wire Mesh

SUS 316-W1 is a specific grade of stainless steel wire mesh that is commonly used in various industrial applications due to its superior corrosion resistance, strength, and durability. It is a variation of AISI 316 stainless steel, which is a popular austenitic stainless steel known for its excellent overall performance. SUS 316-W1 wire mesh is a valuable material for a wide range of industrial and commercial applications where corrosion resistance, strength, and durability are critical factors.

Key Characteristics of SUS 316-W1:

W1 Temper: Indicates a cold-worked condition that results in increased strength and hardness compared to annealed or solutionized states.

Material: SUS 316 stainless steel (AISI 316), SUS 316 stainless steel, an austenitic stainless steel alloy
Composition:

• Chromium: 16-18%
• Nickel: 10-14%
• Molybdenum: 2-3%
• Carbon: ≤0.08%
• Manganese: ≤2%
• Silicon: ≤1%

Corrosion Resistance:

• Excellent resistance to a wide range of corrosive environments, including acids, alkalis, and salt solutions.

High-Temperature Tolerance:

• Can withstand continuous exposure to temperatures up to 800°C (1472°F) and intermittent exposure to temperatures up to 900°C (1652°F).


Durability:

• Strong and resistant to wear and tear, making it suitable for demanding applications.


Versatility:

• Can be fabricated into various forms, including wire mesh, sheets, plates, and pipes.

Molybdenum Addition:

• Contains 2-3% molybdenum, enhancing its resistance to chloride-induced corrosion, particularly in marine environments.


Applications of SUS 316-W1 Wire Mesh:

• Filtration and Separation: Widely used in filtration systems for liquids and gases, particularly in harsh environments where corrosion resistance is crucial.
• Sieving and Grading: Employed in sieving and grading applications to separate particles of different sizes.
• Security and Fencing: Utilized in security screens, fences, and enclosures due to its strength and durability.
• Architectural and Decorative: Used in architectural and decorative elements due to its aesthetic appeal and corrosion resistance.


Stainless Steel AISI 316L CrNiMo 17-12-2 - UNI 24/110 Mesh

Material: AISI 316L (CrNiMo 17-12-2) stainless steel, offering superior corrosion resistance, especially in chloride environments.

Mesh Type: 24/110 mesh, indicating 24 openings per inch (25.4 mm) in one direction and 110 openings per inch (25.4 mm) in the other.

Specifications:

• Wire Diameter: 0.36 mm x 0.25 mm
• Width: 1050 mm
• Operating Conditions: Liquid sulfur, 135-150 °C, 0.10-0.20% cinder, 0.0015-0.0025 bitumen and acidity, 0.05-0.08% humidity, 4-5 bar pressure
• Roll Length: 20-25 meters

Applications:

• Sulfur filtration in various industries

Benefits:

• Corrosion resistance: Ideal for harsh environments
• Precision filtration: Fine mesh for precise particle separation
• Durability: Strong and long-lasting
• Versatility: Suitable for various applications

Note:

• Material: AISI 316L – This is a low-carbon version of AISI 316 stainless steel, which contains 17% chromium, 12% nickel, and 2% molybdenum (CrNiMo 17-12-2). It offers superior corrosion resistance, especially in chloride environments, making it ideal for marine and industrial applications.
• UNI: Refers to the UNI (Ente Nazionale Italiano di Unificazione) standard, which is an Italian certification system for quality and materials.


316 Stainless Steel Wire Mesh Laker Coating for Seaside Environments

By choosing 316 stainless steel wire mesh with a Laker coating, you can ensure a long-lasting and durable solution for your seaside fencing and enclosure needs.

• Material: Type 316 stainless steel, offering superior corrosion resistance in marine environments.
• Weaving Style: Woven wire mesh, providing a strong and durable structure.
• Wire Thickness: 11 gauge (GA), approximately 2.30 mm.
• Mesh Opening Size: 1 inch (25.4 mm), allowing for adequate air flow and visibility.
• Available Lengths: 1 x 25 meters, with other lengths available upon request.
• Coating: Laker coating, a specialized coating designed to enhance durability and protect against corrosion in harsh seaside conditions.
• Certification: Includes a material test certificate to verify the quality and specifications of the stainless steel wire mesh.

Applications:

• Seawall fencing: Protecting coastal areas from erosion and debris.
• Beachfront property enclosures: Securing beachfront properties and preventing unauthorized access.
• Marine structures: Providing support and protection for docks, piers, and other marine infrastructure.
• Outdoor living spaces: Creating stylish and durable enclosures for patios, balconies, and gardens near the sea.

Benefits

• Exceptional corrosion resistance: Withstands the harsh effects of salt air, humidity, and temperature fluctuations.
• Durability: Built to last in demanding outdoor conditions.
• Low maintenance: Requires minimal upkeep and cleaning.
• Aesthetics: Adds a modern and stylish touch to any seaside environment.
• Versatility: Can be used for a variety of applications, from fencing to architectural elements.
